Incline Conveyor

Incline Conveyor

Product Summary

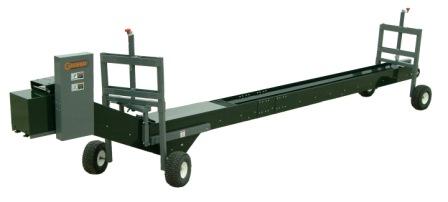

The GrainWay incline conveyor moves grain and provides plenty of discharge clearance. Use this conveyor under aeration floors of multiple grain bins, hopper bottom bins, drive over pits, and numerous other applications.


Guide rails inside the conveyor help cup the belt and let the belt track evenly.

Features

  • Extra long belt life. The conveyor uses an endless rubber belt without a steel splice. An endless belt (no steel splice) keeps this conveyor quiet.
  • Compact size. The compact size works under aeration floors with a height minimum of 11 1/4 inches.
  • Run your aeration system. The aeration system can be run with the conveyor in or with it removed from the grain bin.
  • Fast. The conveyor is fast. It unloads 3000 to 3500 bushel per hour.
  • Flexible. The wheel kit assembly raises and lowers the conveyor to match different grain bin foundation heights. The wheels move the conveyor from one application to another.
  • Gentle. The plastic deflector inside the discharge protects the grain from damage. The belt does not pinch the grain.
  • Easy to Clean. Removable cleaning covers attach to the bottom of the main conveyor.
  • Powder coat paint finish
  • 10 gauge steel frame with bolted construction for easy maintenance.
  • The rollers come with a 2 year manufacturer's warranty.
  • The drive roller has rubber legging and uses a tough 1 1/4” bearing.
  • Electric or hydraulic drive option.
  • Roller sizes:
    2” idlers bolted in place through the side of the conveyor
    4” idlers held in place through the bolted side wall of the conveyor.
Two guide wheels are attached to the end of the conveyor and two guide rails (not shown) help the conveyor slide under the aeration floor of grain bins.

Belt adjustment is easy. Remove the grey cover on the front end of the conveyor.

Remove cover to see grain flow. Lift rubber latch to remove cover. The steel mesh is in place for safety.

  • Hydraulic kit: 12-16 gal./min. (4.9 cu. in.). Comes with flow control.
  • Electric kit: Speed is adjustable by changing pulley size.
Bin Diameter Incline Model Total Length Electric
18-24' 1824-I 21' 7" 5 HP
27-30' 2730-I 24' 7" 7.5 HP
33-36' 3336-I 28' 1" 7.5 HP
42-48' 4248-I 34' 1" 10 hp
