GrainWay outfits grain bins with a full line of accessories. From the new easy opening UHMW plastic slide gates (reinforced by steel) to the straight forward installation process on new or old construction. GrainWay has what you need to make your operation run efficiently.




Grain Bin Accessories





Bin Bracket U Cover: The aeration system of your grain bin can be run with your GrainWay conveyor in place. Attach the U cover to keep an airtight seal for the aeration system.

Bin Bracket Cover: The bin bracket cover (not shown) sits in place of the Bin Bracket U Cover and provides an airtight seal when the conveyor is not in place. This airtight seal lets the aeration system operate.



Bin Bracket: The bin bracket attaches to the grain bin. It is 18” wide and fits under the grain bin floor. The bin bracket is made out of 3/16” steel to reinforce the removed section of the grain bin. The hole inside the bin bracket is where the conveyor enters and exits the grain bin.

Control Rod Handle: Control rod handles (held by the operator) attach to control rods and open the wells in the bin. One control rod can be used on multiple bins.




Guide Rails (for portable conveyors): Two conveyor guide rails are attached to the cement foundation to help the conveyor track straight into the grain bin.




Handle Set (Farm Duty): GrainWay use three rods (shown in the top of the opening) to open the center and side (intermediate) wells in the grain bin. Rod numbers 1 and 3 open the side (intermediate ) wells evenly. Rod number 2 or the center rod opens the center well.

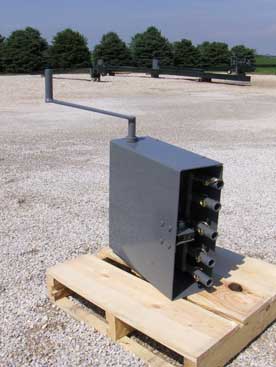

Pull Box Assembly (Large Farm Commercial Duty):  A 5 rod setup is available if more than three sumps are required or if extra wells behind the center well are desired.




Slide Gate: All GrainWay wells feature a UHMW plastic slide gate reinforced by steel on both sides for extra strength. The plastic slide makes opening the well smooth and easy.




Center Well: Wells install in the floor of the grain bin. The center well has a pivot point for a sweep.  On larger bins the pivot point for the sweep is removable.





Side Well: Wells install in the floor of the grain bin.



Well Extension (Used for conveyors without top covers): Well extensions keep the grain on the conveyor. When the wells are installed into the aeration floor of the bin, extensions are bolted to the well. The extensions prevent grain from overflowing the sides of the conveyor. Note: the conveyor is notched out on the end plate so the extensions end up one inch down from the top of the conveyor as it is slid into the grain bin.

The installation of the GrainWay bin equipment is relatively simple. In most cases your bin floor does not need to be pulled up and taken out in order to install the new grain bin equipment.
